4-Hole Dental Low Speed Dental Wrench Type Handpiece E-type

Save $9.99
DenshineSKU: 180160

Price:
$89.99 $99.98

Description

Description:

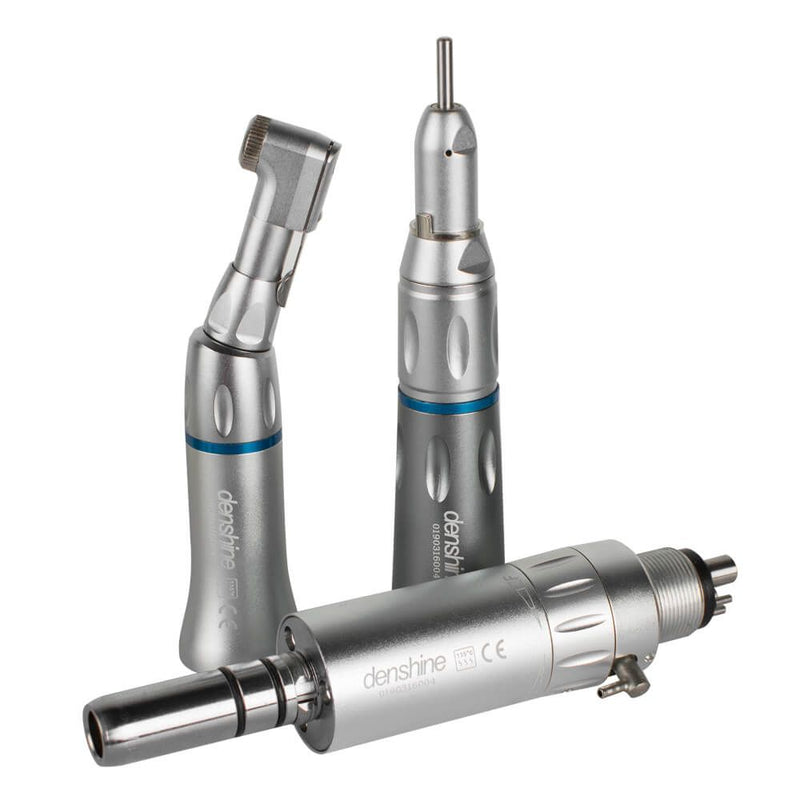

This complete kit includes low speed handpiece contra angle model, low speed handpiece straight model and low speed dental air motor.

Contra angle handpiece

- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

Straight Nose cone

- Working pressure: 0.3MPa (4-hole);
- 0.25MPa (4-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.

Air Mortor

- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 4 holes
- Max speed 20,000 min-1

Specifications

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51

4

27,000

72

Warranty:

- Long Life-Span
- One Year Manufacturer Warranty

Packing List:

- E-type air motor 4-Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 each
- English manual: 1 each
