E-type Dental Slow Speed Handpiece Kit Air Motor 4 Holes

DenshineSKU: 189230

Price:
$35.99

Description

Features:

- E-type connector
- Push Button
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

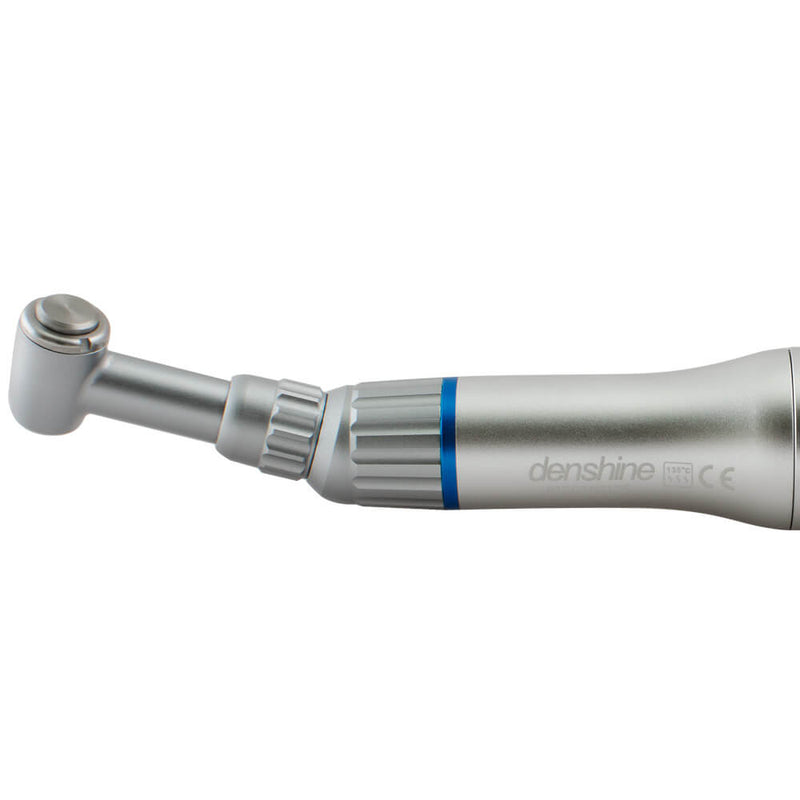

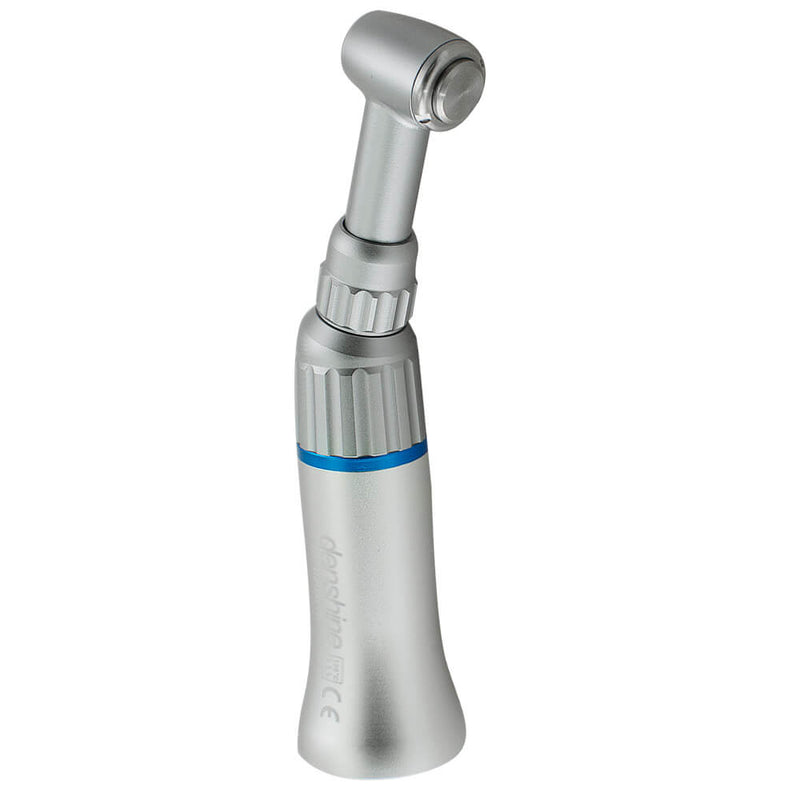

Contra angle handpiece

- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

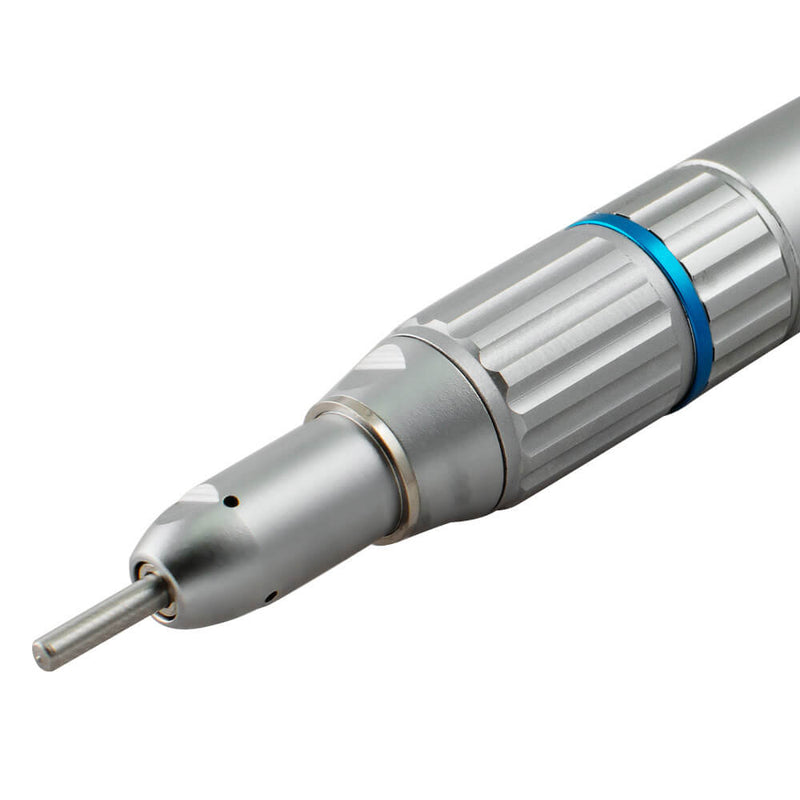

Straight Nose cone

- Working pressure: 0.3MPa (4-hole);
- 0.25MPa (4-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.

Air Mortor

- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 4 holes
- Max speed 20,000 min-1

Specifications

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51

4

27,000

72

Packing List:

- E-type air motor 4-Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- CAP Spanner: 1 each
- English manual: 1 each
