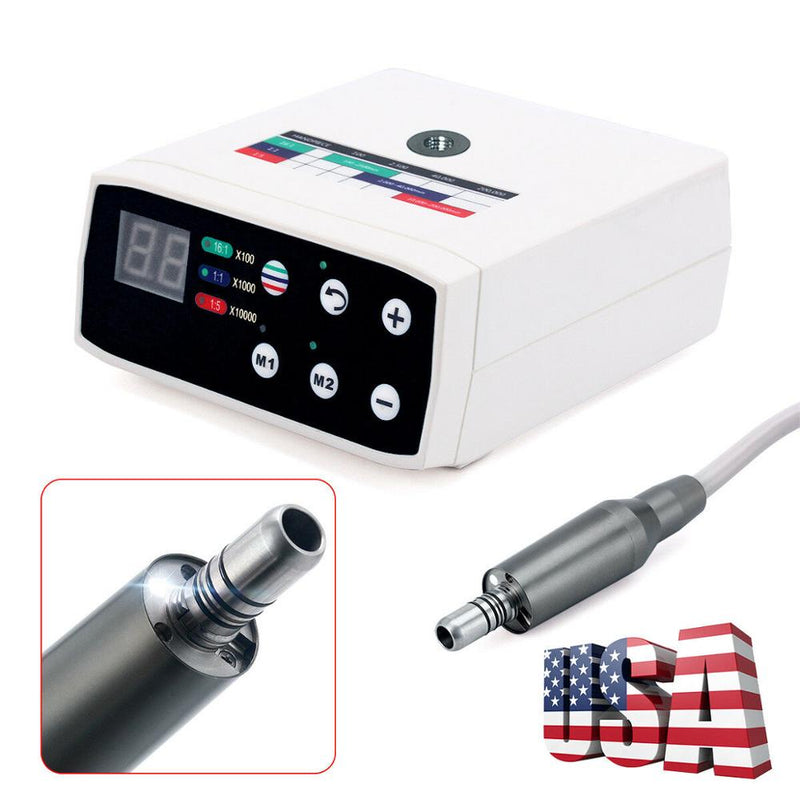

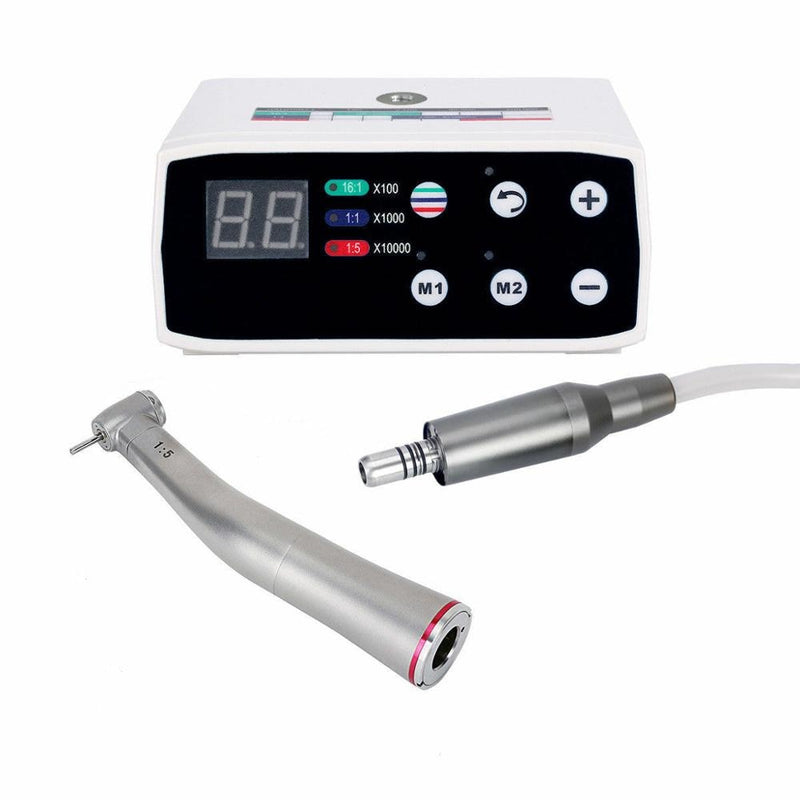

Dental Brushless LED Electric Micro Motor 1:5 Increasing Handpiece

DenshineSKU: 38606053-electric-motor

Color: Electric motor


Technology :

Type of motor: brushless motor

Internal Spray

Three optional settings(1:1/1:5/16:1)


  • 2,000-40,000rpm
  • 2000rpm-40000rpm(1:1)
  • 100rpm-2500rpm(16:1)
  • 10000rpm-200000rpm(1:5)

Torque: 3.4Ncm

Power input: AC 100-240V

Size of motor:φ22xL71 mm

Weight of motor: 71g

Noise level: <60dB

Illuminate: LED(white light)

Size of control device: L150.00 x W128.00 x H55.00mm

Total weight: 1.25kg

Connector: ISO-E type

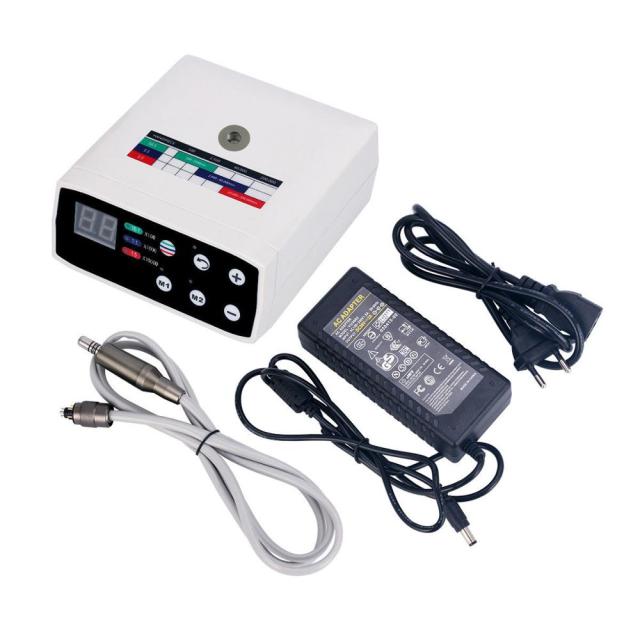

Packing list:

  • Micromotor: 1 pc
  • Control unit:1 pc
  • Micromotor tube:1 pc
  • Power adaptor:1 pc
  • Operation manual:1 pc


  1. Small head slim body
  2. Low noise & vibration
  3. Durable
  4. 1:5 speed increasing
  5. High hardness
  6. Wearable
  7. Corrosion resistance

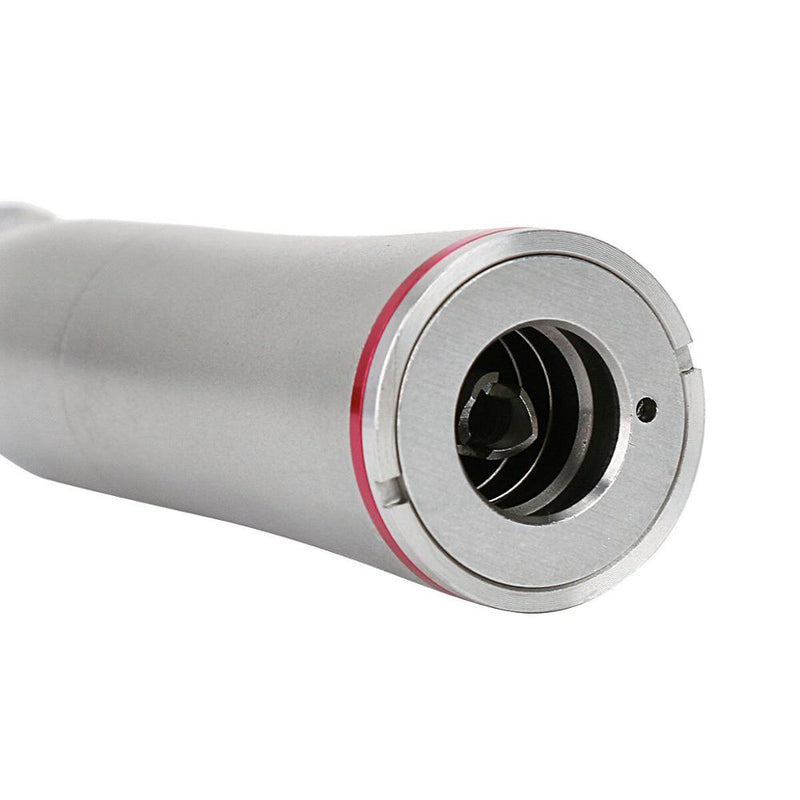

  • Increasing 1:5 ratio
  • Internal 4 water sprays
  • Import ceramic bearing
  • Clamping force: 4.0kg
  • Air pressure: 0.3mpa-0.35mpa
  • Rotate speed : 10,000-200,000rpm/min
  • Min intensity: 25,000lux
  • Bur applicable: 1.60mm
  • Noise : ≤60db
  • Chuck type: push button
  • Suitable for disinfection of high temperature steam at 135℃
